4 port Serial RS232/422/485 Device Server Over IP Ethernet
Diarts releases full production line of Serial Device Server. 1 port 2 port 4 port 8 port with Serial RS232 RS422/485 RS422 RS485 RS232/422/485 Over Ethernet IP also supports with Ethernet over IP PoE PD version, too.

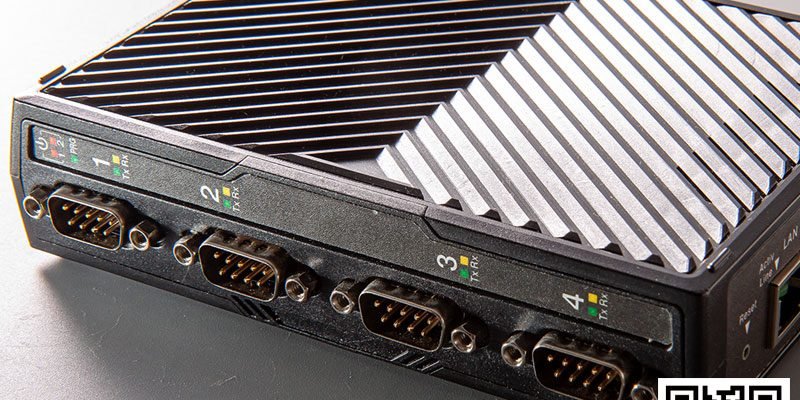

SERLA-3040 – 4 port RS232 RS422 RS485 Device Server Over IP
the item designs with DB9M connector, that You can easy to connect.
Comes with Din Rail
two power input
Serial RS232 RS422
RS485 Over IP Ethernet
Features and Benefit
Transmit and Receive and Ethernet Link and 10/100 LED driver
Gateway IP Address
Serial RS-232/422/485 Interface 4 port
15KV ESD Protection
10/100 Mbps Ethernet Interface
Transfer Rate up to 460Kbps
Two Power Supplies way, both support 10 – 48V
Supports Mode: VSP Com, TCP Server, TCP Client, UDP, Paired Mode, HTTP, DHCP, ICMP(Ping), Static IP, and ARP Supported
Supports Industrial Specification
32 Devices connectivity for RS-485 Max
Specification
Hardware
Serial Connector: DB9M x 4
Ethernet port: RJ 45 x 1
Power port: DC Jack x 1 and Terminal Block 3 pin x 1
Serial Interface
RS-232/422/485 ports: 4 ports
Serial Line Protection
ESD Protection: 15KV ESD Protection for all signals
Performance
Baud rate: up to 460.2 Kbps
Serial Communication Parameters
Data Bits: 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS.XON/XOFF(RS-232)
Connector Signals
Serial RS-232: DCD, RXD, TXD, DTR, DSR, RTS, CTS
RS-422: TxD+, TxD- RxD+, RxD-, GND
2 Wire RS-485: Data+, Data-, GND
4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
VSP com Support
Windows 2000, 2003, XP, 2008, Vista Win 7/8.10 32 and 64bit
Environmental Limits
Operating Temperature: -25 ~ 70℃
Storage Temperature: -40 ~ 85℃
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Case
PC
Product Production
Production: Made in Taiwan
Product Location: Taipei, Taiwan
Package Content
4 port RS-232/422/485 Devcie Server x 1
12V1A Power Adapter(option)
Quick Instill Guide x 1
Driver CD x 1
