2 slot B key M.2 2 lane PCIe Card Hardware Raid 0 1

Supports SATA III / II / I(SATA 3 6G/2 3G/1 1.5G)

Transfer Rate up to 6Gbps(depend on SSD M.2 Modules function)

Full range size 22110, 2280, 2260, 2242 of M.2 Card

Supports Serial SATA Revision 3.2 spec

Supports two lane of PCI Express

Supports Native Command Quenue(NCQ)

Supports Port Multiplier command

Raid Features

Embedded hardware Raid engine

Supports Raid 0, Raid 1 and SPAN

Hardware Raid design

Supports SATA 6G/3G/1.5G spec

Supports Standard and Low Profile bracket

Supports Windows 7 and up

Description

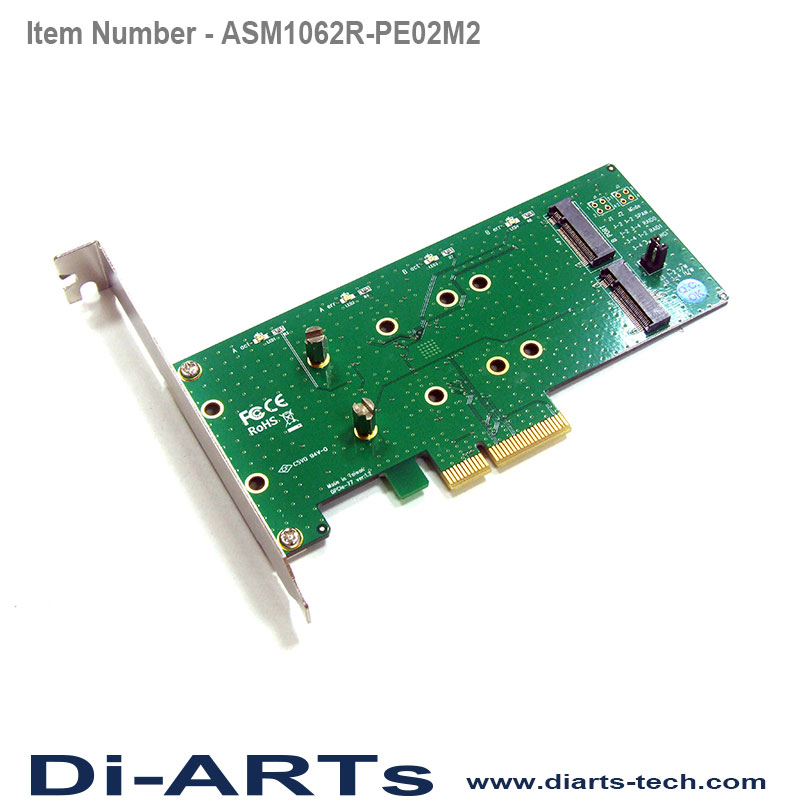

Product Description: 2 slot B key M.2(SATA base) PCIe x 2 lane Card with Hardware Raid 0/1. Supports Standard and Low Profile Bracket

Item Number: ASM1062R-PE02M2



Features and Benefit

Supports SATA III / II / I(SATA 3 6G/2 3G/1 1.5G)

Transfer Rate up to 6Gbps(depend on SSD M.2 Modules function)

Full range size 22110, 2280, 2260, 2242 of M.2 Card

Supports Serial SATA Revision 3.2 spec

Supports two lane of PCI Express

Supports Native Command Quenue(NCQ)

Supports Port Multiplier command

Raid Features

Embedded hardware Raid engine

Supports Raid 0, Raid 1 and SPAN

Hardware Raid design

Supports SATA 6G/3G/1.5G spec

Supports Standard and Low Profile bracket

Supports Windows 7 and up



Specification

Hardware

Communication controller: Asmedia ASM1062R

Bus: PCI Express x 2 lane

Connector: B key M.2(NGFF) x 2



Serial Interface

Number of ports: M.2 B key x 2



Performance

Transfer rate: up to 6Gbps



Driver Support

Windows: Win 7, Win 8.1, and Win 10



Physical Characteristics

Bracket: Standard and Low Profile Bracket

Bracket Space: 1



Environmental Limits

Operating Temperature: -0 ~ 70℃

Storage Temperature: -0 ~ 75℃

Ambient Relative Humidity: 5 ~ 95% Non-Condensing



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

2 slot B key M.2 Raid PCIe Card x 1

Low Profile Bracket x 1

Quick Instill Guide x 1



Warranty

Warranty Period: 1 Year
