4 port High Speed RS232 PCI Express PCIe Card

Expands 4 com ports for your system

High Speed Baud Rate up to 921.6Kbps

Design to meet PCI Express 2.0 Gen 1 compliant

Supports PCI Express x1, x2, x4, x8, and x16 Lane

Built-in 15KV ESD protection

Supports Industrial Specification

256 byte FIFOs

Supports 5V/12V/RI(pin9), 5V/12V/DCD(pin1) Selectable for pin 9

Supports Microsoft Windows, Linux, and QNX drivers

Description

4 port High Speed Serial RS-232 PCI Express(PCIe) card support 5V/12V/RI(pin9), 5V/12V/DCD(pin1) Selectable and Standard and Low Profile Bracket

Item Number: SERPE-1400P



Features and Benefit

Expands 4 com ports for your system

High Speed Baud Rate up to 921.6Kbps

Design to meet PCI Express 2.0 Gen 1 compliant

Supports PCI Express x1, x2, x4, x8, and x16 Lane

Built-in 15KV ESD protection

Supports Industrial Specification

256 byte FIFOs

Supports 5V/12V/RI(pin9), 5V/12V/DCD(pin1) Selectable for pin 9

Supports Microsoft Windows, Linux, and QNX drivers



Specification

Hardware

Communication controller: 16C550 UART Compatible register Set

Bus: PCI Express x 1

Connector: DB44F



Serial Interface

Number of ports: 4 ports

Serial Standard: RS-232

IRQ and I/O Address: Assigned by System



Serial Line Protection

ESD Protection: 15KV ESD Protection for all signals



Performance

Baud rate: up to 921.6 Kbps

FIFOs: 256 byte



Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF



Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, 5V/12V/DCD(selectable), GND, 5V/12V/RI(selectable)



Driver Support

Windows: XP, 2003, Vista, 2008, Win 7/8.1

Linux: 2.6

QNX: 6.0



Physical Characteristics

Bracket: Standard and Low Profile Bracket

Bracket Space: 1



Environmental Limits

Operating Temperature: -30 ~ 75℃

Storage Temperature: -40 ~ 85℃

Ambient Relative Humidity: 5 ~ 95% Non-Condensing



Standards and Certifications

CE and FCC supports



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

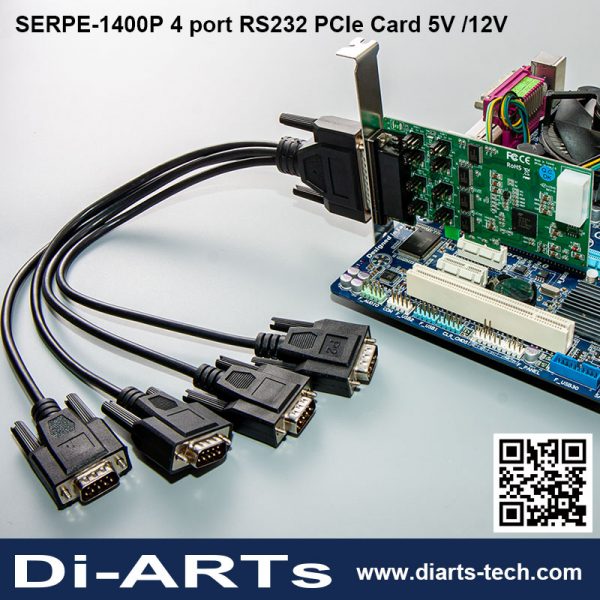

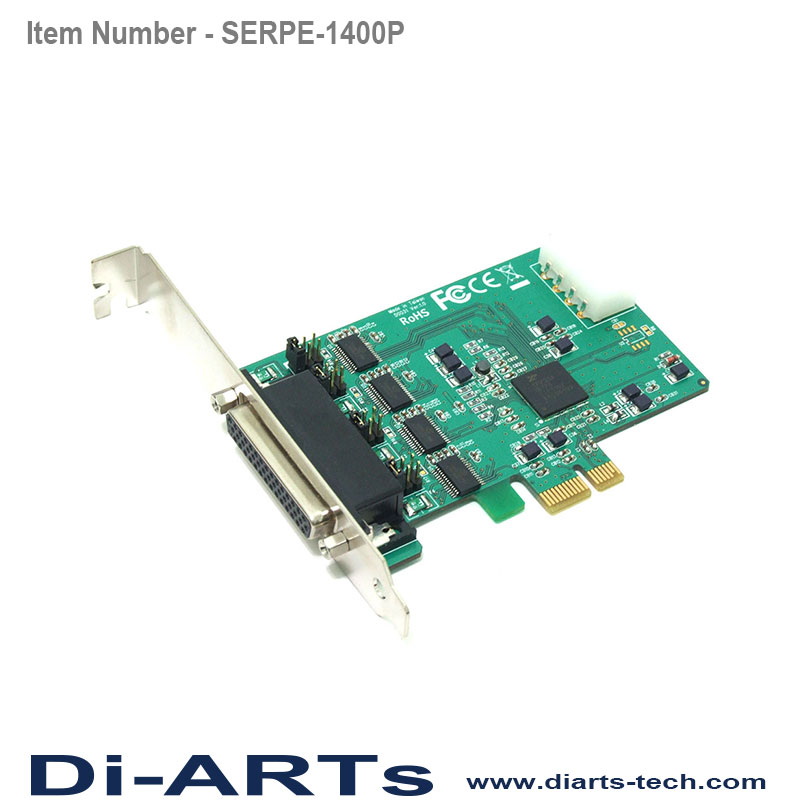

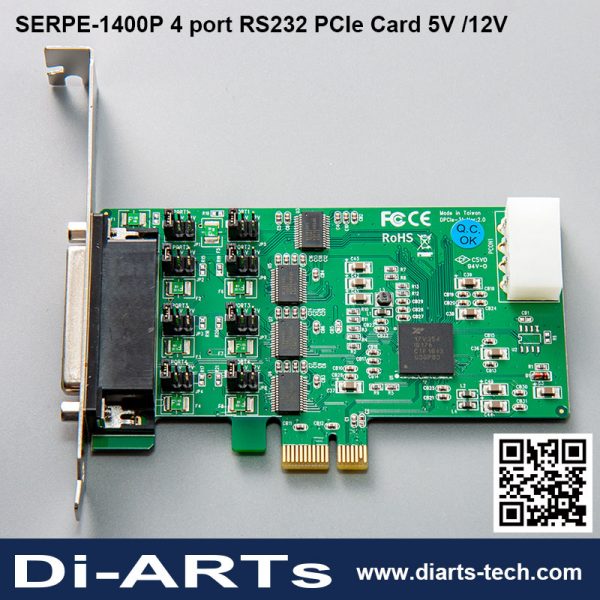

4 port RS-232 PCI Express Card x 1

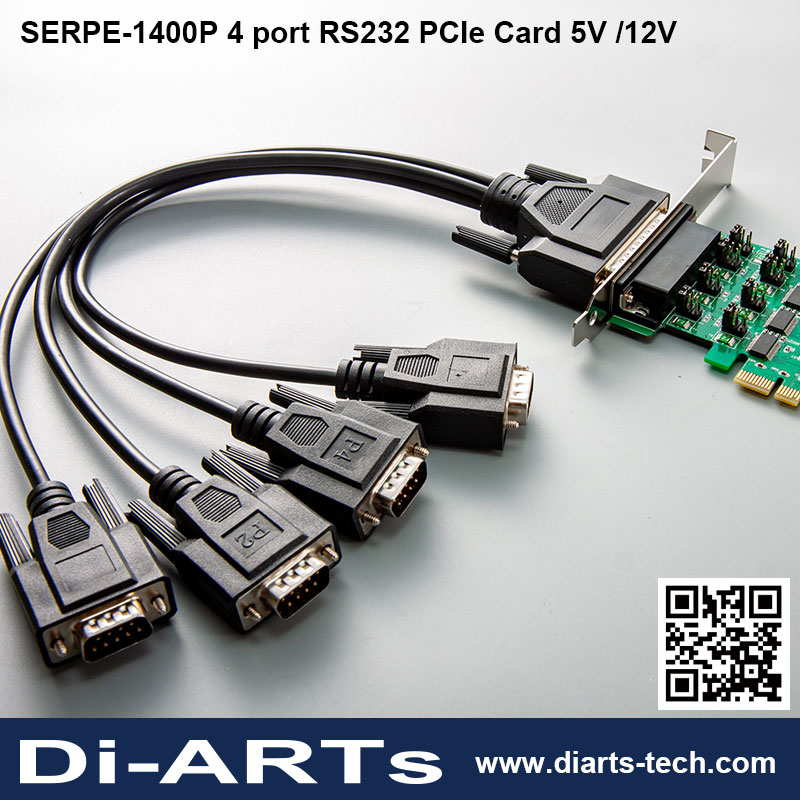

DB44F to 4 x DB9M Cable 30cm x 1

Low Profile Bracket x 1

Quick Instill Guide x 1

Driver CD x 1
