USB to High Speed 1 port RS422 RS485 Adapter

Expands 1 RS-422/485 com ports for your system

High Speed Baud Rate up to 921.6Kbps

USB 1.0/1.1 compliant, USB 2.0 Full Speed compatible

12Mbps USB Data Rate

Built-in Terminator 120 ohm for DIP Switch Setting

32 Device Connectivity for RS-485 Max.

Transmit and Receive LED supports

Built-in 15KV ESD protection for all Serial Port and RS-422/485 Signals Protection

Supports Industrial Specification

TX buffer 128 bytes and RX buffer 256 bytes

Supports Microsoft Windows, Linux, and MAC drivers

Description

Product Description: USB to High Speed 1 port RS-422/485 Adapter DIN Rail

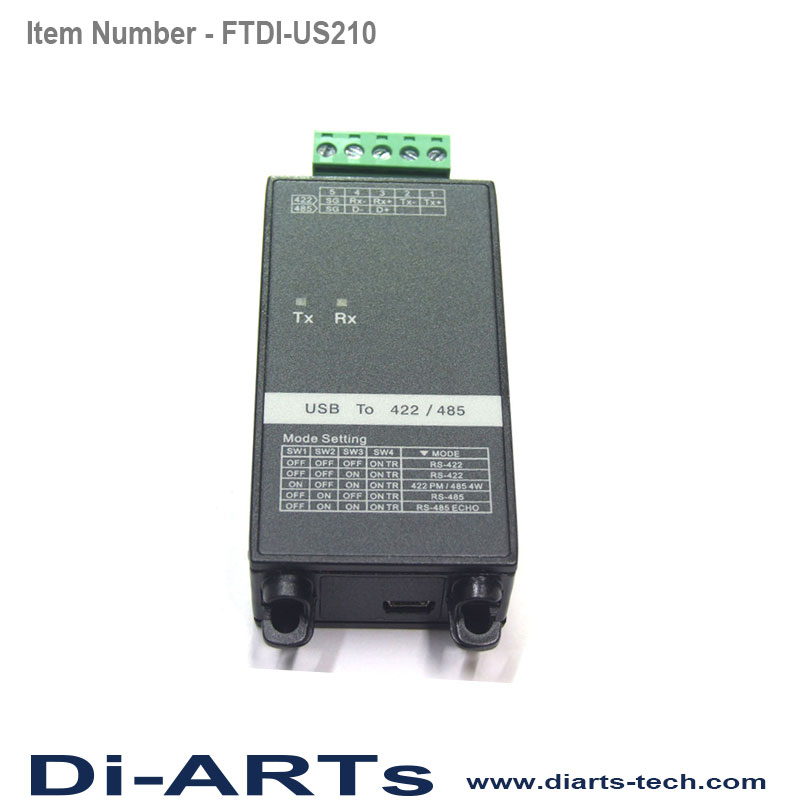

Item Number: FTDI-US210







Features and Benefit

Expands 1 RS-422/485 com ports for your system

High Speed Baud Rate up to 921.6Kbps

USB 1.0/1.1 compliant, USB 2.0 Full Speed compatible

12Mbps USB Data Rate

Built-in Terminator 120 ohm for DIP Switch Setting

32 Device Connectivity for RS-485 Max.

Transmit and Receive LED supports

Built-in 15KV ESD protection for all Serial Port and RS-422/485 Signals Protection

Supports Industrial Specification

TX buffer 128 bytes and RX buffer 256 bytes

Supports Microsoft Windows, Linux, and MAC drivers



Specification

Hardware

Communication controller: FTDI – USB to Serial Controller

Device Connector: Terminal Block 5 Pin 5.08mm

Host Connector: Mini USB B Type



Serial Interface

Number of ports: 1 port

Serial Standard: RS-422/485

IRQ and I/O Address: Assigned by BIOS



Serial Line Protection

ESD Protection: 15KV ESD Protection for all signals



Performance

Baud rate: up to 921.6 Kbps

FIFOs: TX Buffer128 bytes, RX Buffer 256 bytes



Serial Communication Parameters

Data Bits: 7, 8

Stop Bits: 1, 2

Parity: None, Even, Odd, Space, Mark



Serial Signals

RS-422: Tx+, Tx-, Rx+, Rx-, GND

4 Wire RS-485(RS-422 Multi-Drop): Tx+, Tx-, Rx+, Rx-, GND

RS-485(2 Wire RS-485) : Data+, Data-, GND



Driver Support

Windows: XP, 2003, Vista, 2008, Win 7

Linux: 2.4 and 2.6

MAC: 8/9/X



Physical Characteristics

Housing: PC



Environmental Limits

Operating Temperature: -30 ~ 75℃

Storage Temperature: -40 ~ 85℃

Ambient Relative Humidity: 5 ~ 95% Non-Condensing



Standards and Certifications

CE and FCC supports



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

USB to 1 port RS-422/485 Adapter x 1

DIN Rail Kit x 1

USB Mini B Type to USB A type Cable 100cm x 1

Quick Instill Guide x 1

Driver CD x 1
