4 port RS232 RS422 RS485 Device Server Over Ethernet

Transmit and Receive and Ethernet Link and 10/100 LED driver

Gateway IP Address

Serial RS-232/422/485 Interface 4 port

15KV ESD Protection

10/100 Mbps Ethernet Interface

Transfer Rate up to 460Kbps

Two Power Supplies way, both support 10 – 48V

Supports Mode: VSP Com, TCP Server, TCP Client, UDP, Paired Mode,        HTTP, DHCP, ICMP(Ping), Static IP, and ARP Supported

Supports Industrial Specification

32 Devices connectivity for RS-485 Max


Description

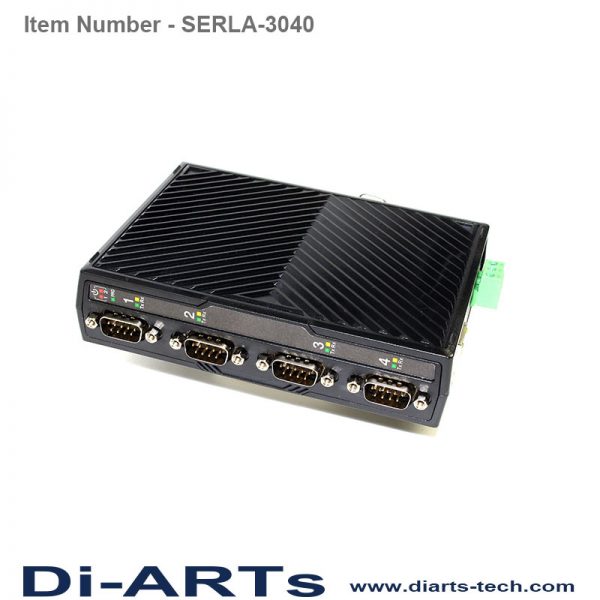

Product Description: 4 port RS-232 RS422 RS485 Device Server Over Ethernet

Item Number: SERLA-3040



Serial RS232 RS422 RS485 Device Server

Serial RS232 RS422
RS485 Over IP Ethernet



Features and Benefit

Transmit and Receive and Ethernet Link and 10/100 LED driver

Gateway IP Address

Serial RS-232/422/485 Interface 4 port

15KV ESD Protection

10/100 Mbps Ethernet Interface

Transfer Rate up to 460Kbps

Two Power Supplies way, both support 10 – 48V

Supports Mode: VSP Com, TCP Server, TCP Client, UDP, Paired Mode,        HTTP, DHCP, ICMP(Ping), Static IP, and ARP Supported

Supports Industrial Specification

32 Devices connectivity for RS-485 Max

Serial RS232 RS422 RS485 Device Server

Serial RS232 RS422
RS485 Over IP Ethernet

Specification

Hardware

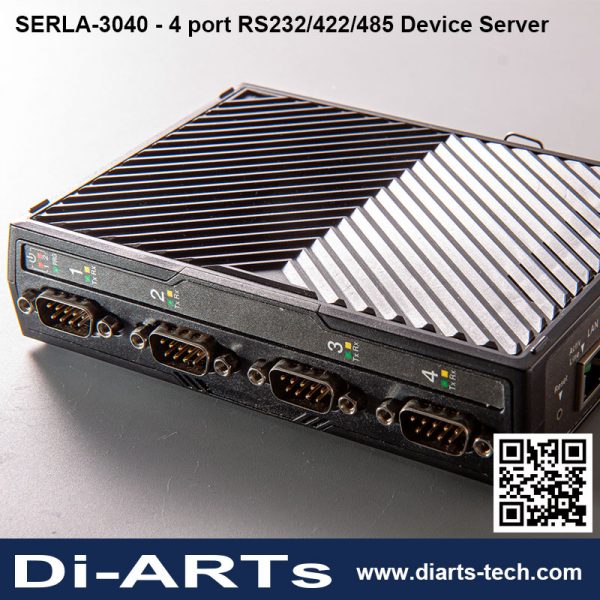

Serial Connector: DB9M x 4

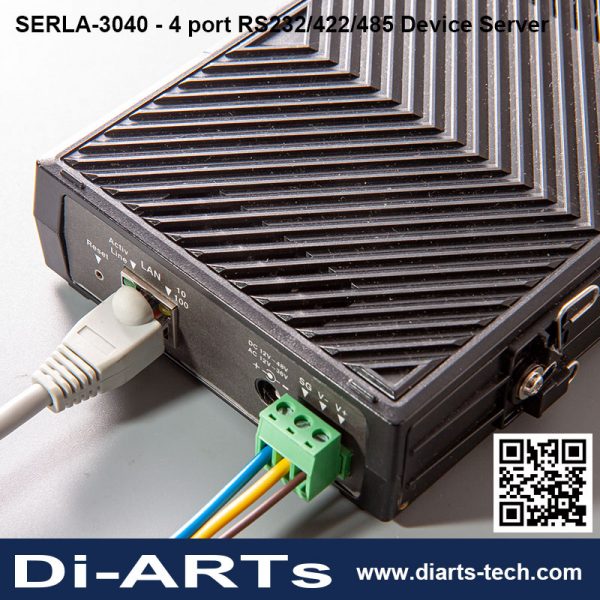

Ethernet port: RJ 45 x 1

Power port: DC Jack x 1 and Terminal Block 3 pin x 1



Serial Interface

RS-232/422/485 ports: 4 ports



Serial Line Protection

ESD Protection: 15KV ESD Protection for all signals



Performance

Baud rate: up to 460.2 Kbps



Serial Communication Parameters

Data Bits: 7, 8

Stop Bits: 1, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS.XON/XOFF(RS-232)



Connector Signals

Serial RS-232: DCD, RXD, TXD, DTR, DSR, RTS, CTS

RS-422: TxD+, TxD- RxD+, RxD-, GND

2 Wire RS-485: Data+, Data-, GND

4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND



VSP com Support

Windows 2000, 2003, XP, 2008, Vista Win 7/8.10 32 and 64bit



Environmental Limits

Operating Temperature: -25 ~ 70℃

Storage Temperature: -40 ~ 85℃

Ambient Relative Humidity: 5 ~ 95% Non-Condensing

Case

PC





Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

4 port RS-232/422/485 Devcie Server x 1

12V1A Power Adapter(option)

Quick Instill Guide x 1

Driver CD x 1
