4 port RS232 RS422 RS485 Device Server Over Ethernet PD PoE

Transmit and Receive and Ethernet Link and 10/100 LED driver

Gateway IP Address

Serial RS-232/422/485 Interface 4 port

15KV ESD Protection for RS-232/422/485 port

10/100 Mbps Ethernet Interface

Transfer Rate up to 921Kbps

Two Power Supplies way, both support 10-48Vdc

Supports Mode: VSP Com, TCP Server, TCP Client, UDP, Paired Mode,        HTTP, DHCP, ICMP(Ping), Static IP, and ARP Supported

32 Devices connectivity for RS-485 Max

Input voltage range 36V to 57V

1.5K isolation input to output

IEEE 802.3af POE (up to 15 Watts Per Port for P.S.E)

shot-circuit output protection

Supports Industrial Specification


Description

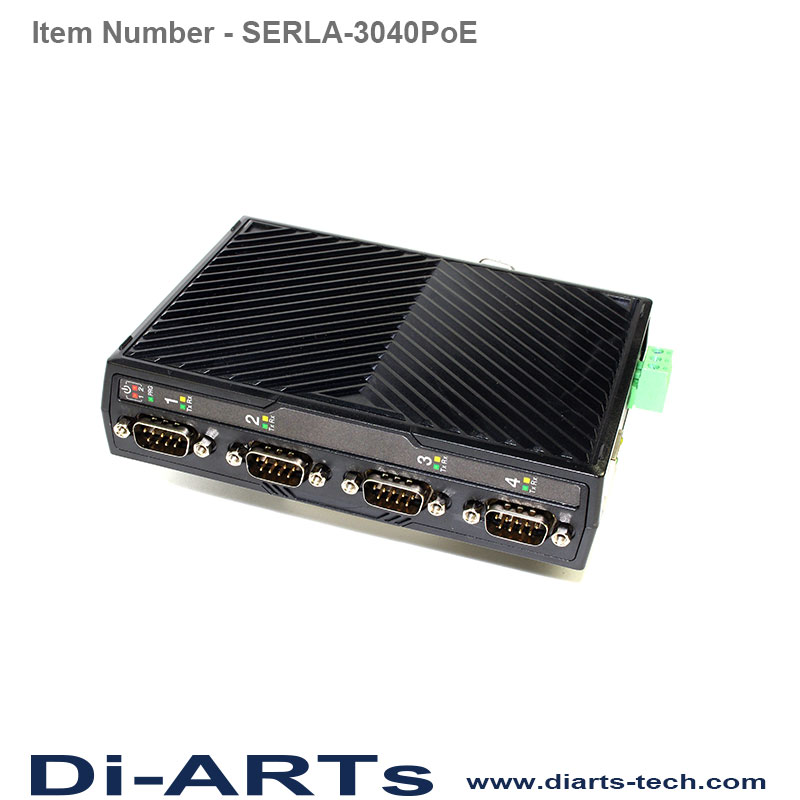

Product Description: 4 port RS232 RS422 RS485 Device Server Over Ethernet PD ( PoE )

Item Number: SERLA-3040POE

Features and Benefit

Transmit and Receive and Ethernet Link and 10/100 LED driver

Gateway IP Address

Serial RS-232/422/485 Interface 4 port

15KV ESD Protection for RS-232/422/485 port

10/100 Mbps Ethernet Interface

Transfer Rate up to 921Kbps

Two Power Supplies way, both support 10-48Vdc

Supports Mode: VSP Com, TCP Server, TCP Client, UDP, Paired Mode, HTTP, DHCP, ICMP(Ping), Static IP, and ARP Supported

32 Devices connectivity for RS-485 Max

Input voltage range 36V to 57V

1.5K isolation input to output

IEEE 802.3af POE (up to 15 Watts Per Port for P.S.E)

shot-circuit output protection

Supports Industrial Specification



Specification

Hardware

Serial Connector: DB9M x 4

Ethernet port: RJ 45 x 1

Power port: DC Jack x 1 and Terminal Block 3 pin x 1



PoE Interface

Input voltage range 36V to 57V

1.5K isolation input to output

IEEE 802.3af POE (up to 15 Watts Per Port for P.S.E)

shot-circuit output protection



Serial Interface

ports: 4 port RS232 or 4 port RS422/485



Serial Line Protection

ESD Protection: 15KV ESD Protection for all signals

Surge Protection: 600W Surge for RS422/485



Performance

Baud rate: up to 921 Kbps



Serial Communication Parameters

Data Bits: 7, 8

Stop Bits: 1, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS.XON/XOFF



Connector Signals

RS-232: DCD, RXD, TXD, DTR, DSR, RTS, CTS

RS-422: TxD+, TxD- RxD+, RxD-, GND

2 Wire RS-485: Data+, Data-, GND

4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND





VSP com Support

Windows 2000, 2003, XP, 2008, Vista Win 7/8 32 and 64bit



Environmental Limits

Operating Temperature: -20 ~ 70℃

Storage Temperature: -40 ~ 85℃

Ambient Relative Humidity: 5 ~ 95% Non-Condensing



Case

Metal



Standards and Certifications

CE and FCC supports



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

4 port RS-232/422/485 Devcie Server x 1

Quick Instill Guide x 1

Driver CD x 1
