Showing all 5 results

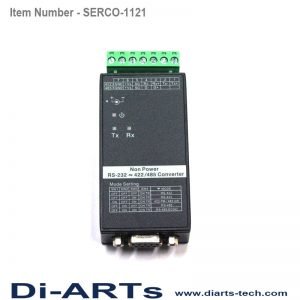

RS485 to RS232 Converter din rail wall mountRS485 to RS232 Converter din rail wall mount

Bi-Directional RS232 to RS422 RS485 Converter

High Speed Baud Rate up to 921.6Kbps

Built-in Terminator 120 ohm for DIP Switch Setting

Max 10 Device connectivity for 4 Wire RS-485(RS-422 Multi-Drop) Mode

Max 32 Device Connectivity for RS-485 Mode

Communication status can be monitored through LED

600W Surge Protection

Built-in 15KV ESD protection for all Serial Port and RS-422/485 Signals Protection

Supports Industrial Specification

No Driver Needs

Bi-Directional RS232 to RS485 3KV l Isolation

High Speed Baud Rate up to 921.6Kbps

Built-in Terminator 120 ohm for DIP Switch Setting

Max 32 Device Connectivity for RS-485 Mode

Communication status can be monitored through LED

3KV Optical Isolation Protection

600W Surge Protection

Built-in 15KV ESD protection for all Serial Port and RS-485 Signals Protection

Supports Industrial Specification

No Driver Needs

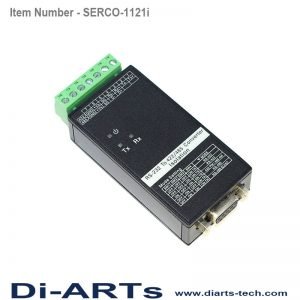

RS485 RS422 to RS232 Converter IsolationRS485 RS422 to RS232 Converter Isolation

RS232 to RS422 RS485 3KV Isolation

High Speed Baud Rate up to 921.6Kbps

Built-in Terminator 120 ohm for DIP Switch Setting

Max 10 Device connectivity for 4 Wire RS-485(RS-422 Multi-Drop) Mode

Max 32 Device Connectivity for RS-485 Mode

Communication status can be monitored through LED

3KV Optical Isolation Protection

600W Surge Protection

Built-in 15KV ESD protection for all Serial Port and RS-422/485 Signals Protection

Supports Industrial Specification

No Driver Needs

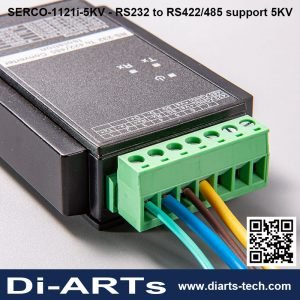

5KV Isolation5KV isolation

RS232 to RS422 RS485 Converter 5KV Isolation

Features and Benefit

High Speed Baud Rate up to 921.6Kbps

Built-in Terminator 120 ohm for DIP Switch Setting

Max 10 Device connectivity for 4 Wire RS-485(RS-422 Multi-Drop) Mode

Max 32 Device Connectivity for RS-485 Mode

Communication status can be monitored through LED

5KV Optical Isolation Protection

600W Surge Protection

Built-in 15KV ESD protection for all Serial Port and RS-422/485 Signals Protection

Supports Industrial Specification

No Driver Needs

rs232 rs485 rs422 to fiber st converter SERFI-3010-STMrs232 rs485 rs422 to fiber st converter SERFI-3010-STM

Serial to Fiber ST Multi-mode converter

Optical fibers enable transmission of up to 2 km

Half/Full-duplex, bidirectional transmission mode

Support for ring-mode

Support for Redundant System

Avoid lightning strikes and EMI/RFI

Prevents damage from electrostatic discharge

Stable and error-free data transmission

Automatic internal RS-485/RS485 4W bus supervision

No external flow control signals required for RS-485/RS485 4W

Transient suppression and over-current protection onRS232/422/485 data lines

LED for power and data flow indicatio

DIP SW Function Setting
