2 port eSATAp USB2.0 Adapter Card

Expands 2 eSATAp or USB2.0 ports for your system

Transfer Rate up to 3Gbps for SATA port, 480Mbps for USB2.0 port

Supports 5V/12V power from Power eSATAp connector

Supports No Driver needs for all OS

Easy to set up for External Boot system


Description

Product Description: 2 port Power eSATAp / USB2.0(Power Over eSATA, eSATA/USB) Adapter Card supports Dual Power 5V and 12V,

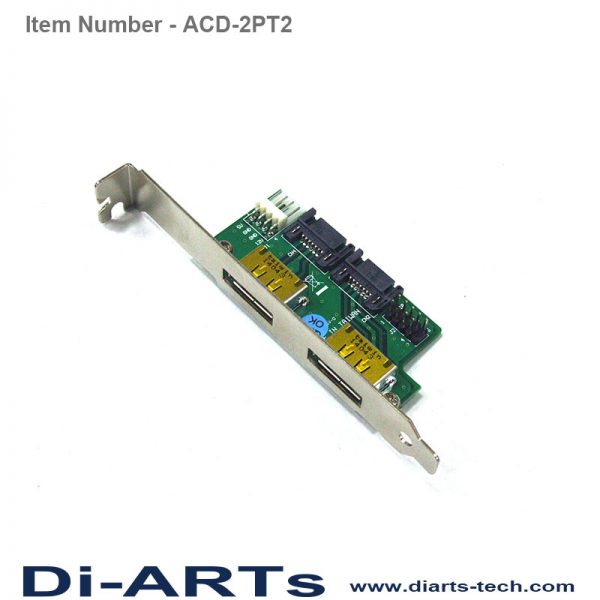

Item Number: ACD-2PT2





Power Over eSATAp 5V/12V

Here is more information to clear for you why you do not need any power supply for your External SATA devices. It is about the Power Over eSATAp connector – We have use 5V/12V Power Over eSATAp/USB connector to design this product. The connector has

7 pin for SATA data transfer

4 pin for USB2.0 data transfer, it has also 5V power support. As we have USB2.0 has 5V power. The 5V power is comes from Desktop Power Supply.

2 pin for 12V Power supports. The 12V power comes from Desktop Power Supply.

Hot Swap

The product has support “Hot Swap”, it has depend on your M/B. For now, some M/B’s SATA port has supported with Hot Swap, but some has no support it. If no support Hot Swap, after you connector the SATA HDD, it will also not support with Hot Swap, too

USB2.0

The connector allows you to connect with USB devices too. The Power Over eSATA connector allows us to connect with USB A type products too.

Features and Benefit

Expands 2 eSATAp or USB2.0 ports for your system

Transfer Rate up to 3Gbps for SATA port, 480Mbps for USB2.0 port

Supports 5V/12V power from Power eSATAp connector

Supports No Driver needs for all OS

Easy to set up for External Boot system



Specification

Hardware

Communication controller: none

Connector: Power eSATAp/USB x 2



Interface

Number of ports: 2 ports

SATA Standard: SATA II

USB Standard: USB 2.0



Performance

SATA II: Up to 3Gbps

USB2.0: Up to 480Mbps



Driver Support

No driver needs



Physical Characteristics

Bracket: Standard

Bracket Space: 1(Standard Bracket)



Standards and Certifications

CE and FCC supports



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

2 port Power eSATAp/USB Adapter Card x1

Embedded USB Cable x 1

SATA Cable x 2

Power Cable x 1

Quick Instill Guide x 1



Warranty

Warranty Period: 1 Year
