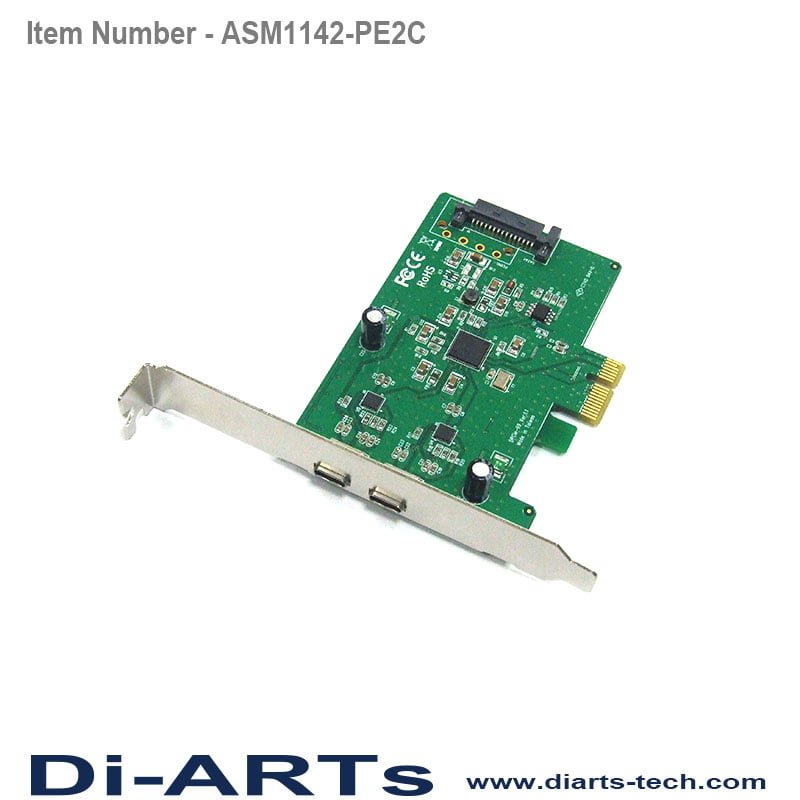

2 port Type C Super Speed USB3.0 PCI Express(PCIe) Card

Expands 2 port Type C for your system

High Speed Transfer Rate up to 5Gbs

Design to meet PCI Express 2.0 Gen 1 compliant

Supports PCI Express x1, x2, x4, x8, and x16 Lane

Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

Compliant with xHCI(eXtensible Host Controller Interface) Specifications Revision 0.96

Supports simultaneous operation of multiple USB 3.0, USB 2.0, and USB 1.1 devices

Supports USB Data transfer rate of 1.5/12/480/5000 Mbps

Expands 2 port External USB3.0 Super-Speed Port for your Desktop system

Each USB port output power up to 5V 900ma for USB device

Hot Swap feature allow you to connect/disconnect devices

Microsoft WHQL approve

Supports Driver for Microsoft Windows

Description

Item Number: UPD720201-PE2C





Product Description: 2 port Type C Super-Speed USB3.0 PCIe Card support Standard and Low Profile Bracket



Application

USB Devices

USB3.0 Enclosure

USB3.0 Pen Disk

USB3.0 Card Reader

USB to DVI/HDMI Adapter

USB3.0 Internal products



Features and Benefit

Expands 2 port Type C for your system

High Speed Transfer Rate up to 5Gbs

Design to meet PCI Express 2.0 Gen 1 compliant

Supports PCI Express x1, x2, x4, x8, and x16 Lane

Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

Compliant with xHCI(eXtensible Host Controller Interface) Specifications Revision 0.96

Supports simultaneous operation of multiple USB 3.0, USB 2.0, and USB 1.1 devices

Supports USB Data transfer rate of 1.5/12/480/5000 Mbps

Expands 2 port External USB3.0 Super-Speed Port for your Desktop system

Each USB port output power up to 5V 900ma for USB device

Hot Swap feature allow you to connect/disconnect devices

Microsoft WHQL approve

Supports Driver for Microsoft Windows



Specification

Hardware

Communication controller: NEC(Renesas) UPD720201

Bus: PCI Express x 1

Connector: USB 3.0 type-C x 2,

Interface

Number of ports: 2 port External

USB Standard: USB 3.0(Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), Super Speed(5Gpbs) )



Performance

Data transfer rate: 1.5/12/480/5000 Mbps



PCIe Card Power Input

Input: SATA 15Pin Power Connector



USB3.0 Power Out

USB 3.0: 5V/900ma(each port)



Driver Support

Windows: XP, Vista, Win 7/8.1(32 and 64bit)



Physical Characteristics

Bracket: Standard and Low Profile Bracket

Bracket Space: 1



Standards and Certifications

CE and FCC supports



Product Production

Production: Made in Taiwan

Product Location: Taipei, Taiwan



Package Content

2 port Type-C Super-Speed USB3.0 PCIe Card x 1

Low Profile Bracket x 1

Quick Instill Guide x 1

Driver CD x 1



Warranty

Warranty Period: 1 Year
